Aluminum Extrusion vs CNC Machining: Custom Profiles vs Milled Parts Guide

Whether you’re designing custom extruded aluminum profile, t-slot, modular structural components or milled parts, grasping manufacturing process and process for aluminum lets you weigh distinct advantages and match solutions to your application requirements.

Introduction: Aluminum Extrusion vs CNC Machining Decision Context

The choice between aluminum extrusion vs CNC machining is not just a cost comparison. It is a manufacturability decision. The right process depends on the part shape, the required tolerance, the production volume, the alloy, the finish, and the amount of post-processing needed.

Extrusion is usually strongest when the part has a consistent cross-section and production volume can support the cost of extrusion tooling. CNC machining for aluminum excels when the part needs precise features, complex profile cnc milling, tight dimensional control, or frequent design changes. Many production parts use both: extrusion creates the main profile, and CNC machining adds holes, threads, sealing surfaces, cutouts, or precision interfaces.

The key point is simple: extrusion forms the shape; CNC machining cuts the shape. That difference affects nearly every engineering decision that follows.

What is aluminum extrusion, and why does profile geometry matter?

The extrusion process is a core forming method within aluminum fabrication and extrusion fabrication. A heated aluminum billet is pushed through a die to create a long profile with a consistent cross-section. The output can be a bar, tube, channel, rail, heat sink profile, frame member, or other linear shape.

Profile geometry matters because the die controls the cross-section. If the shape can be drawn as one continuous section along the part length, extrusion may be feasible. If the part has changing geometry along its length, pockets, isolated bosses, deep internal features, angled surfaces, or complex 3D contours, extrusion alone is usually not enough.

This is why aluminum extrusion works well for scalable structural and thermal profiles, but less well for parts where the functional geometry changes from one area to another.

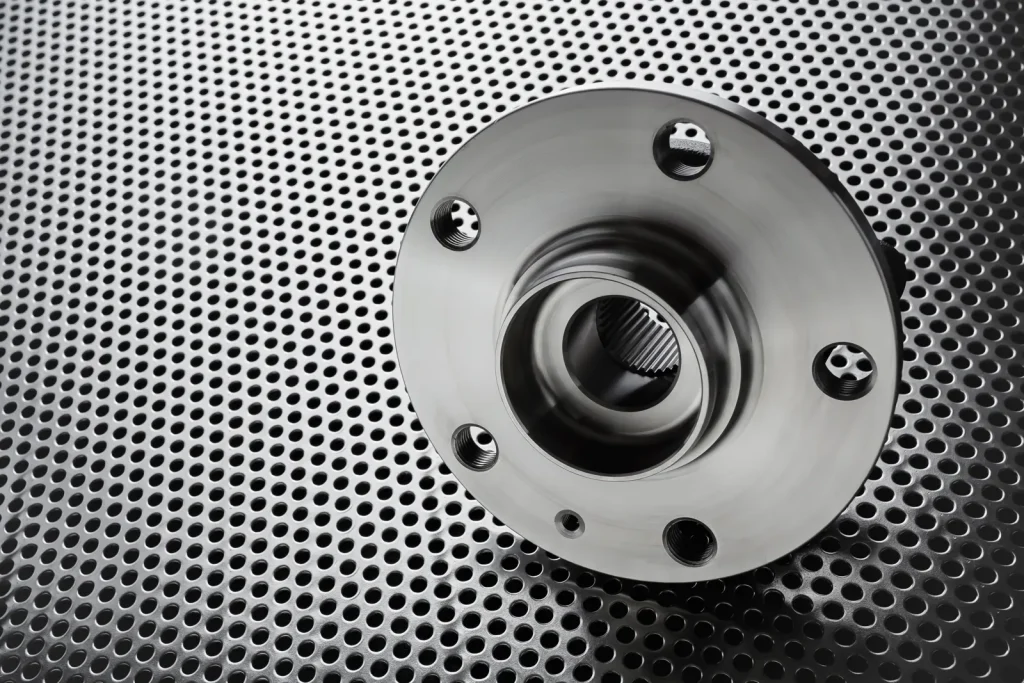

What is CNC machining, and why does precision drive process choice?

Cnc aluminum extrusion processing relies on subtractive cutting, and cnc machining differ greatly from traditional aluminum forming methods. A cutting tool removes material from stock, such as plate, bar, billet, casting, forging, or extrusion. CNC milling, drilling, tapping, boring, and turning can create precise features that extrusion cannot form directly.

Precision often drives the process choice because CNC machining can locate features relative to datums, create sealing faces, machine threads, control hole patterns, and produce detailed surfaces. It is also flexible. A design change may require a new CNC program, fixture change, or toolpath update instead of a new extrusion die.

That flexibility makes CNC machining common for prototypes, low-to-mid volume parts, and parts where exact specifications matter more than material efficiency. Standard guidelines for cnc machining for aluminum and subtractive manufacturing are published by global mechanical engineering authorities to regulate precision and process consistency.

Why volume, tolerance, geometry, and secondary operations decide the best route

The practical decision usually comes down to four factors:

• Geometry: Can the part be represented as a constant cross-section, or does it need 3D machined features?
• Tolerance: Are the critical dimensions controlled by the extrusion profile, by machining, or by both?
• Volume: Is the order large enough to justify extrusion tooling and possible minimum order quantities?
• Secondary operations: Does the extrusion still need sawing, drilling, tapping, milling, deburring, inspection, or finishing?

In many real parts, extrusion is not a complete process by itself. It creates the base shape efficiently, then CNC machining finishes the functional areas. This hybrid route is common when the part needs both a scalable profile and precise local features.

Table: Aluminum extrusion vs CNC machining at a glance

Feasibility: Can the Part Be Extruded, CNC Machined, or Both?

Feasibility starts with the shape. A part that looks simple in CAD may be difficult to extrude if the cross-section has weak sections, enclosed areas, or features that do not run along the full length. A part that looks easy to machine may become expensive if most of the starting block must be removed.

The best early question is not which process is better. It is whether the functional geometry belongs in the base profile, in machined features, or in both.

A practical screen is to ask whether the cross-section stays constant, whether critical features occur only at ends or local zones, whether walls are thick and stiff enough for threads or sealing faces, and whether functional datums can be machined instead of left as-extruded. Also review bow, twist, and fixture access before assuming profile-plus-machining is feasible. If these checks fail, the part may need to stay CNC-only or be redesigned before deciding when to use aluminum extrusions.

When aluminum extrusion is not suitable for complex geometries

Extrusion is not suitable when the part needs non-uniform geometry along its length, unsupported thin walls, difficult hollows, severe profile asymmetry, or die features that create tongue-ratio and metal-flow risk. Constant cross-section is only the first screen; wall balance, circumscribing circle limits, hollow complexity, and die feasibility review also matter. If the shape requires tight local relationships between faces, holes, and sealing features, those features usually need machining or a different process.

The support keyword when aluminum extrusion is not suitable for complex geometries matters because many buyers compare extrusion and CNC as if both can make the same shapes. They cannot. Extrusion is constrained by the die opening and the need to push material through that opening in a stable way.

If the part requires precision at several unrelated locations, CNC machining may be the main process. If the part is mostly a long section with repeated geometry, extrusion may be the better base process.

Design limitations of aluminum extrusion compared with CNC machining

The main design limitations of aluminum extrusion compared with CNC machining come from the constant cross-section rule. Extrusion can produce long prismatic shapes, but it does not create local holes, tapped features, precision pockets, milled sealing faces, or detailed end features during the forming step.

Extrusion also commits the design to a die. If the cross-section changes after testing, the die may need to change. This makes extrusion less flexible during early product development.

CNC machining has fewer geometry limits because tools can approach the part from different directions. But CNC still has its own constraints, including tool access, fixture access, cutter reach, setup count, workholding stability, and inspection access.

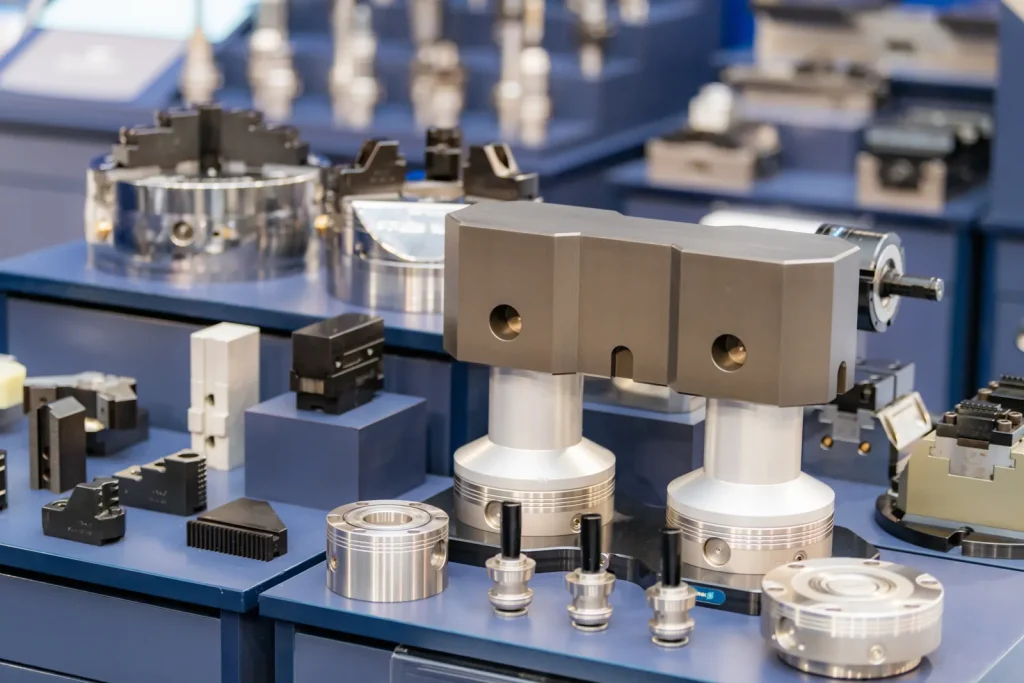

Challenges in CNC milling complex extruded profiles

The challenges in machining extruded profiles and complex extruded shapes are different from machining a simple billet. Extrusions can be long, thin, hollow, or ribbed. These shapes may be harder to clamp without distortion. They may also vibrate during cutting if the walls are slender or the unsupported length is high.

The machinist must define reliable datums. This can be harder when the as-extruded surfaces have normal variation. If a machined hole pattern must align with an extruded channel or slot, the datum scheme must account for the profile’s actual condition.

Complex extruded profiles may also need custom fixtures, soft jaws, nesting supports, or staged machining. These do not make the design impossible, but they affect cost, lead time, and inspection planning.

Can CNC machining be used on aluminum extrusions?

CNC machining can be used on aluminum extrusions, and this is one of the most common combined workflows. The extrusion provides the near-net profile, while CNC machining adds the features that require tighter control or local geometry.

As a rule, put repeatable full-length geometry into the extrusion, put localized precision features into CNC machining, and avoid die-loaded details that still require heavy cleanup. Holes, threads, sealing faces, bearing seats, and interface locations are usually better assigned to machining when function depends on position to a datum. If thread engagement is limited in the extruded wall, review thicker profile bosses, secondary pads, inserts, or through-fastening instead of assuming direct tapping will work.

Common machined features on extrusions include precision drilled extruded parts, cut-to-length ends and custom milled interfaces:

• Cut-to-length ends
• Drilled holes
• Tapped holes
• Slots and windows
• Counterbores
• Milled pads
• Sealing surfaces
• Mounting interfaces
• Threaded fastener locations

This hybrid method is often chosen when a fully machined part would waste too much material, but an extrusion-only part would not meet functional requirements.

How Each Process Works for Aluminum Parts

Understanding the process flow helps explain cost, tolerance, and risk. Extrusion places more work into the die and profile design. CNC machining places more work into programming, setups, toolpaths, workholding, and inspection.

Aluminum extrusion: billet, die, uniform cross-section, and profile output

In aluminum extrusion, the billet is forced through a die that defines the profile. The result is a long section with the same cross-section along its length. After extrusion, the profile may be cooled, stretched, cut, aged, inspected, and sent to secondary operations.

The process is material-efficient because it forms the shape instead of cutting most of it away from a block. This is one reason extrusion is often favored for bulk production of standard or custom profiles.

The limitation is that the die must represent the profile. If the part needs local precision features, those features are normally added later.

CNC machining: subtractive cutting, setups, toolpaths, and inspection points

CNC machining starts with stock material. The machine removes material using controlled tool motion. A setup defines how the part is held. A toolpath defines where the cutter moves. Inspection checks whether the part meets the drawing requirements.

CNC machining is strong when geometry or tolerance drives the design. It can create precise holes, threads, flatness-critical faces, pocketed regions, and multi-side features. It also supports design changes more easily than an extrusion die.

The tradeoff is material removal. If the final part is a long thin profile but starts as a solid block, a large amount of aluminum may be cut away. That can make CNC machining less efficient for high-volume profile-like parts.

Secondary machining requirements for aluminum extrusions

The secondary machining requirements for aluminum extrusions depend on how much functionality the final part needs beyond the extruded shape. A simple rail may only need cutting and deburring. A cooling plate, enclosure rail, machine frame member, or mounting bracket may need drilled holes, tapped holes, milled faces, and finish preparation.

Secondary machining is often required when the part has:

• Fastener holes that must align with another assembly
• Threads that must hold load
• Sealing faces that must control contact
• Ends that must be square or matched
• Slots or pockets not possible in the die
• Surfaces that need controlled flatness or finish

The more secondary operations are added, the more the project begins to behave like a machining project from a cost and lead time standpoint.

Process diagram: extrusion-only vs CNC-only vs extrusion plus CNC

Advantages and Limitations by Decision Factor

The strongest process depends on which factor is most important. A part optimized for material use may favor extrusion. A part optimized for precision may favor CNC. A part optimized for both may use extrusion plus CNC.

Tradeoffs between custom extrusions and milled aluminum parts

The tradeoffs between custom extrusions and milled aluminum parts are most visible in design control. A custom extrusion can place material where it is needed along the whole length. This can reduce waste and support repeat production. But it requires a die and works best when the cross-section is stable.

A milled aluminum part can have complex features and precise interfaces without waiting for extrusion tooling. It is often a better fit during development, when revisions are expected. But if the part is long and profile-like, milling from solid stock may remove much more material than extrusion.

A hybrid design can reduce this conflict. The extrusion carries the main shape. CNC machining adds only the features that require cutting.

Material efficiency: extrusion profile forming vs CNC material removal

Extrusion is usually more material-efficient for long uniform profiles because it forms the cross-section directly. CNC machining removes unwanted material from stock. If a part has a low buy-to-fly ratio in practice, machining may create more chips and use more raw material.

This does not mean extrusion is always cheaper. Tooling, minimum order quantities, post-machining, finishing, and inspection can change the result. For low volume parts, CNC machining may be more economical because it avoids extrusion die cost and allows quicker design changes.

For high-volume parts with a stable profile, extrusion often becomes more attractive because the die cost can be spread across more parts.

Surface finish differences between extruded and CNC machined aluminum parts

The surface finish differences between extruded and CNC machined aluminum parts come from how the surface is created. Extruded surfaces are formed by material flow through the die. CNC machined surfaces are cut by tools and may show tool marks depending on tooling, speeds, feeds, and finishing passes.

Extruded surfaces may be suitable for non-critical exterior or structural areas. Machined surfaces are often preferred where the part must seal, mate, align, or locate another component.

If the part will be anodized or otherwise finished, both the as-extruded and machined areas should be reviewed. Mixed surfaces can respond differently in appearance because they were formed by different processes.

Strength differences between extruded profiles and CNC machined parts

The strength differences between extruded profiles and CNC machined parts depend on alloy, temper, geometry, material direction, and how much material is removed. The provided research supports only a qualitative comparison, not universal strength values.

Extrusion can place material efficiently along the profile and can create ribs, walls, channels, and heat-dissipating shapes. CNC machining can preserve strength where the designer leaves material, but aggressive material removal can create thin walls, stress concentrations, or weak sections.

For load-bearing parts, the decision should be based on the actual geometry and the applicable design requirements. The process alone does not determine whether the part is strong enough.

Common Problems, Risks, and Failure Scenarios

Most failures in extrusion vs CNC decisions come from assuming the first process can do everything. Extrusion may not hold every functional dimension tightly enough. CNC machining may not be cost-effective if geometry should have been extruded. Hybrid projects may fail when datum control and distortion are not planned early.

Tolerance variation and tolerance limits of machined aluminum extrusions

The tolerance limits of machined aluminum extrusions are affected by both the extrusion and the machining process. The extruded profile has its own variation. The machined features have their own setup and cutting variation. When a machined feature references an extruded surface, both sources matter.

A common risk is placing tight requirements on features that depend on as-extruded geometry. If the profile varies, the machined hole or slot may be accurate relative to the fixture but not relative to every surface on the extrusion.

For critical parts, define functional datums clearly. Decide which surfaces are allowed to remain as-extruded and which must be machined before they become datums.

Separate profile size and straightness from cut length, machined hole position, and datum-dependent functional tolerances. As-extruded surfaces may be acceptable for non-critical envelope dimensions, but fit, sealing, bearing, and assembly-driving features should usually be machined from defined datums. Datum strategy still has limits if bow, twist, or section movement during clamping changes the feature relationship.

Risks of distortion when machining long extruded profiles

The risks of distortion when machining long extruded profiles come from part geometry and workholding. Long sections, thin walls, and hollow profiles can move when clamped. They can also vibrate during cutting or change shape after material is removed.

Distortion risk increases when machining removes material from only one side, when the profile is poorly supported, or when the part must hold a long straightness or alignment requirement after machining.

Design teams should plan where the part will be clamped, which surfaces will be supported, and whether the profile is stiff enough for the required operations. If the machining sequence is ignored, a feasible extrusion can become difficult to finish accurately.

Threading and drilling accuracy in extruded aluminum parts

Threading and drilling accuracy in extruded aluminum parts depends on datum selection, wall thickness, tool access, and profile stability. A hole drilled through a thin wall or rib may need enough surrounding material to hold the thread and resist deformation.

If holes must align across several faces, setup strategy becomes important. A single setup may control relative position better than multiple setups, but only if the fixture can access all required features.

Tapped holes in extrusions often need careful review because the extruded wall may not provide enough thread engagement, depending on the design. Designers may need to thicken local sections in the profile or move the thread to a machined pad.

Anodizing challenges for machined extruded aluminum components

Anodizing challenges for machined extruded aluminum components often relate to surface condition. Extruded surfaces and machined surfaces may not look the same after finishing because one surface is formed and the other is cut.

Sharp machined edges may also need deburring before finishing. If a cosmetic finish is important, the drawing should define which surfaces are visible, which are functional, and which finish variation is acceptable.

For parts with both machined and extruded areas, finishing should be considered before production tooling is locked. Late finish requirements can add machining, polishing, masking, or inspection steps.

Cost, Tolerance, and Lead Time Factors

Cost cannot be judged by process name alone. Aluminum extrusion vs CNC machining cost depends on volume, geometry, tooling, setup, alloy, secondary operations, finishing, and inspection. The research supports qualitative cost behavior, but not verified universal cost thresholds.

A practical cost check is to compare die cost, machining minutes avoided, expected annual volume, scrap exposure, and any secondary operations needed to reach final tolerances and finish. Break-even is project-specific and should be judged by whether the profile actually removes enough machining and assembly work to offset tooling. Standard profiles only help low-volume programs when the envelope, alloy, and feature layout are genuinely compatible with the design.

Aluminum extrusion vs CNC machining cost for low volume parts

For aluminum extrusion vs CNC machining cost for low volume parts, CNC machining is often more practical because it avoids extrusion die cost and minimum order concerns. It also supports revisions without changing a die.

Extrusion can still be considered at low volume if a standard profile already exists. In that case, the project may only need cut-to-length and secondary machining. But custom extrusion at low volume can be hard to justify if the design is still changing.

The cost decision should separate the profile cost from the finishing cost. A low-cost extrusion can become expensive if it needs heavy machining after forming.

Impact of production volume on extrusion vs CNC machining

The impact of production volume on extrusion vs CNC machining is one of the main decision drivers. Extrusion usually becomes more attractive as volume increases because die cost and setup effort can be spread across more parts. CNC machining is more flexible at lower volume because it does not require a custom die.

At higher volumes, CNC-only production may still make sense if the part geometry is too complex for extrusion or if precision features dominate the part. But if the part is mostly a constant profile, extrusion can reduce material removal and improve repeatability of the base shape.

The practical break point is project-specific. It depends on the die, the amount of machining avoided, the stock form, scrap, finishing, and inspection requirements.

Factors affecting extrusion tooling cost for custom profiles

The factors affecting extrusion tooling cost for custom profiles include profile complexity, die type, cross-section size, wall features, hollow sections, tolerance expectations, and the amount of development needed before the profile is stable.

A simple open profile is usually less demanding than a complex hollow or multi-cavity profile. Tight profile requirements can also increase review, die correction, sampling, and inspection effort.

Tooling costs should not be judged alone. A die that reduces downstream machining may be justified in production. A die that only saves a small amount of machining may not be worth it if volume is low or the design is likely to change.

Lead time comparison between extrusion dies and CNC machining setup

The lead time comparison between extrusion dies and CNC machining setup depends on whether tooling already exists. CNC machining can often begin after programming, fixture planning, material sourcing, and setup preparation. Custom extrusion adds die design, die manufacture, sampling, profile validation, and then any secondary operations.

This does not mean CNC is always faster. Complex CNC parts may need several setups, special workholding, inspection planning, and finish trials. An extrusion may also be fast if a standard profile is available.

Lead time risk is highest when the design needs a custom die and also needs critical machined features. Both process paths must be planned instead of treating machining as a late add-on.

Application Fit: Where Each Process Makes Sense

The best applications are those that match the natural strengths of the process. Extrusion fits long, repeatable profiles. CNC machining fits precision and complex local geometry. Hybrid manufacturing fits parts that need both.

Best applications for CNC machining after aluminum extrusion

The best applications for CNC machining after aluminum extrusion are parts where the base shape is constant but the function depends on local features. Examples include structural rails with mounting holes, heat sink profiles with machined interfaces, frame parts with threaded ends, and cooling components with sealing surfaces.

CNC after extrusion is also useful when a standard profile can be adapted into a custom component. This reduces the need to machine the whole part from solid stock while still allowing accurate features.

The design should define which features are created by the die and which are created by machining. This prevents unrealistic expectations for the extrusion profile.

Thermal performance considerations for extruded aluminum heat sinks

Thermal performance considerations for extruded aluminum heat sinks often favor extrusion because fins and base shapes can be formed as a continuous profile. This supports scalable production of heat-dissipating sections.

CNC machining may still be needed for contact faces, mounting holes, threaded inserts, or local clearance features. In thermal parts, the interface surface can matter as much as the fin profile. A rough or uneven contact face can reduce assembly quality even if the extrusion shape is otherwise efficient.

For heat sinks and cooling profiles, separate the heat-dissipating geometry from the precision mounting geometry. Extrusion can handle the first. CNC machining often handles the second.

EV and automotive cooling components: precision interfaces vs scalable profiles

Cooling components in EV and automotive applications show why no single process wins every time. CNC machining supports tight control of interfaces, sealing areas, and complex flow or mounting features. Extrusion supports scalable thermal profiles and repeatable long sections.

A hybrid route is common when the part needs stable profile geometry but also needs machined ports, sealing faces, holes, and assembly interfaces. The extrusion provides a scalable base. CNC machining controls critical features.

For these applications, inspectability matters. Critical machined areas should be easy to measure and tied to clear datums. The extrusion should not be expected to control every functional interface without machining.

Which process is better for prototypes, low-volume parts, and production runs?

For prototypes, CNC machining is often the safer first route because it allows design changes without a die. For low-volume parts, CNC machining may also avoid tooling and minimum order issues.

For production runs with stable profile geometry, extrusion often becomes more attractive. If the part has many repeated lengths or a constant cross-section, extrusion can reduce material removal and support scalable production.

For production parts with both a stable profile and precision details, extrusion plus CNC machining is usually the most practical path.

Evaluation Checklist for Engineering and Procurement Teams

A good purchasing decision needs more than a unit price. Engineering and procurement teams should check whether the selected process can meet the drawing, the inspection plan, and the production volume without hidden rework.

Checklist: geometry, tolerance, volume, alloy, finish, and inspection requirements

Use this checklist before choosing a route:

Confirm whether one supplier controls both extrusion and machining, what stock form and temper are assumed, how long parts will be fixtured, and whether straightness or bow after machining is critical to function. Define which features are cosmetic versus functional, and identify any prototype-to-production transfer risk if the launch phase starts with CNC-only parts. RFQs should state annual volume, critical-to-function features, datum scheme, finish class, and whether mixed as-extruded and machined surfaces are acceptable.

How alloy selection affects machinability of extruded aluminum

How alloy selection affects machinability of extruded aluminum is an important review point, but it should not be separated from extrusion feasibility. An alloy that extrudes well may still need review for drilling, tapping, milling, finishing, and strength.

Machinability affects tool wear, chip control, burr formation, surface finish, and thread quality. If the extrusion will need significant CNC work, the alloy should be selected with both processes in mind.

For hybrid parts, alloy choice is not only a material specification. It is a manufacturing decision.

Cost impact of tight tolerances on aluminum extrusion projects

The cost impact of tight tolerances on aluminum extrusion projects can appear in several places. Tight profile requirements may increase die development and inspection effort. Tight machined features may require more careful fixturing, more setups, slower cuts, or added inspection.

A common mistake is applying tight tolerances to every surface. This can force unnecessary machining or sorting. Instead, define critical features clearly and allow less critical extruded surfaces to remain within practical profile limits.

Tight tolerances should be connected to function. If a surface does not locate, seal, slide, or assemble with another component, it may not need machining-level control.

Minimum order quantity concerns for custom aluminum extrusions

Minimum order quantity concerns for custom aluminum extrusions matter most when the design is new, volume is uncertain, or only a small batch is needed. A custom profile may require order quantities that exceed prototype or service-part demand.

This is one reason CNC machining is common for early parts. It avoids commitment to a profile die and inventory. If the design later stabilizes, extrusion can be reviewed as a production option.

For procurement, MOQ should be evaluated together with tooling cost, expected revisions, storage, and secondary machining cost.

Final Decision Guide: Choosing Extrusion, CNC, or a Hybrid Workflow

The decision should follow the part, not the preferred process. Start with geometry. Then review tolerance, volume, material use, secondary operations, finishing, and inspection.

Decision matrix: choose extrusion when the profile is consistent and volume supports tooling

Choose extrusion when the part has a uniform cross-section, the design is stable, and the production volume can support tooling. This route is well suited to rails, channels, tubes, heat sink sections, frames, and repeated linear profiles.

Extrusion is also a good fit when material efficiency matters and the profile can reduce machining from solid stock. It is less suitable when the part needs many local features that cannot be formed through the die.

Decision matrix: choose CNC machining when precision, features, or geometry dominate

Choose CNC machining when the part has complex geometry, tight local features, prototypes, low-volume demand, or likely design changes. CNC is also preferred when the part needs precise holes, threads, pockets, sealing surfaces, or multi-face relationships.

CNC-only production may cost more at scale for profile-like parts because material removal can be high. But it may still be the correct route when extrusion cannot make the shape or when precision dominates the design.

Decision matrix: combine extrusion and CNC when profiles need precise cuts, holes, threads, or sealing surfaces

Combine extrusion and CNC when the part has a repeatable profile but needs precise secondary features. This is often the best route for production parts that need scalable geometry and controlled interfaces.

Use extrusion for the long, constant shape. Use CNC machining for cut lengths, holes, threads, slots, sealing faces, mounting pads, and inspection-critical features. The design must include a clear datum plan so machined features relate correctly to the extrusion.

References to verify: standards bodies, academic sources, industry reports

Use this article as process guidance, then verify final extrusion tolerances, profile feasibility, alloy and temper limits, machining requirements, and inspection criteria with supplier capability review and applicable industry standards before release. The provided research did not include verified quantitative tolerance, cost, waste, or lead time data from independent standards or academic sources, so project-specific validation is needed.

In practice, this means checking alloy standards, extrusion tolerances, machining drawing standards, surface finish requirements, anodizing specifications, and inspection methods before placing an order. This is especially important for critical structural, thermal, sealing, or automotive components.

FAQs

References

https://www.aluminum.org

https://www.asme.org

https://www.sae.org

https://www.iso.org
