カウンターシンクとザグリ穴の比較マシンドリル＆ザグリ穴

Understanding the difference between countersinks and counterbores is essential for accurate drilling, reliable machining, and proper fastener seating in precision components. This guide breaks down their key distinctions, machining uses, and practical applications for counterbore holes and CNC operations.

What countersink and counterbore are, and why the difference matters

Countersink and counterbore represent common types of holes, and both are secondary features added around holes for screws or bolts that are commonly used in precision machining. Both are used to control how a fastener’s head sits in a part. The difference seems simple, but it changes fastener choice, machining method, part strength, and whether the assembly will fit as intended.

In mechanical engineering and CNC加工, this choice is rarely cosmetic. It affects whether a screw head sits flush, whether a tool can reach the fastener, whether a thin part can support the feature, and whether the hole can be machined with repeatable quality.

Countersink vs counterbore: the core difference in hole shape and fastener seating

Countersinking creates a conical hole, a tapered hole that allows screws to sit flush, meaning a countersink hole is cone-shaped at the top of a hole. It matches the angled underside, so screws sit flush, and the angle of the countersink must align precisely with the fastener’s head. The shape is tapered, not straight-walled.

A counterbore hole is cylindrical, and a counterbore creates a flat-bottomed enlargement with a flat bottom. It creates a recess for a screw head or bolt head with a flat bearing surface under the head, such as a socket head cap screw. The walls are straight and the bottom is flat.

Understanding the differences between counterbore and countersink is vital, and this is the core difference in countersink vs counterbore: one seats an angled head in a cone, and the other seats a straight-sided head in a flat-bottom pocket. If the fastener head geometry does not match the feature geometry, the fastener will not seat correctly.

Flat bottom vs conical hole for fastener seating

The question of flat bottom vs conical hole for fastener seating is really a question of head geometry and load contact.

A conical countersink gives line or surface contact along the angled underside of a flat head screw. When the angle is correct and the screw is sized correctly, the head centers itself as it tightens. This can help with alignment in some assemblies, but it also makes the angle match critical.

A flat-bottomed hole created by a counterbore gives bearing contact under the head of a cap screw or bolt head. The fastener head sits inside a cylindrical pocket, and tightening force is carried through the flat underside of the head into the flat bottom of the recess.

If the design needs a flush exterior surface with a flat head screw, a countersink is usually the intended feature. If the design uses a socket head cap screw and needs the head recessed for clearance, counterbore holes are typically used and you can use the counterbore method.

Countersink vs counterbore for flat head screws

For countersink vs counterbore for flat head screws, the countersink is the normal engineering choice because it matches screw head geometry. A flat head screw is designed to seat in a conical feature.

A counterbore is usually a poor match for a flat head screw. The head may contact only at an edge, may sit too high, or may wedge in a way that does not produce stable seating. In some cases, the screw can appear seated while still leaving poor bearing contact. That can affect clamping, alignment, and appearance.

So when the fastener itself is a flat head screw, the feature should normally be a countersink unless there is a special washer or insert arrangement that changes the contact geometry.

Why screw heads not sitting flush creates assembly and fit problems

Problems with screw heads not sitting flush are not limited to appearance. In machined assemblies, a proud head can interfere with mating components, covers, sliding parts, fixtures, or operator handling. If a component is meant to sit flat against another surface, a raised screw head can create a gap that changes load path or alignment.

There are also cases where a screw head sits below the surface too deeply. With a countersink, overcutting can reduce head support. With a counterbore, too much depth can reduce wrench access, lower bearing support, or weaken the area around the hole.

This is why flush fastener seating problems in machined holes should be treated as a function issue first and a visual issue second. The feature has to match the fastener, and the depth or angle has to match the design intent.

Table: countersink vs counterbore by geometry, fastener type, and seating result

Can it be manufactured and applied in your part?

The right choice is not only about fastener style. It is also about whether the feature is practical in the part you are making. Part thickness, material behavior, and machine access can rule out one option even when it looks correct on paper.

When part thickness, material, and access make one option impractical

Part thickness is often the first limit. A counterbore needs enough material to create a flat-bottom recess without breaking through or leaving a very weak floor. A countersink also removes material at the top of the hole, and in thin sections it can leave a knife edge or too little support for the screw head.

Material matters because the feature changes the local wall section around the hole. Thin brittle sections may chip at the entrance. Softer materials may deform under the screw head if the seating area is small or if the feature is oversized.

Access matters in machining and assembly. A feature may be possible in CAD but hard to machine if the part orientation is poor or if the tool cannot reach the surface squarely. The same issue applies in use. A deep counterbore may recess a screw head so far that tool engagement becomes awkward.

Counterbore vs countersink for sheet metal applications

In counterbore vs countersink for sheet metal applications, the limiting factor is usually thickness. Sheet metal often does not have enough thickness for a true counterbore with useful depth, and counterbore holes can also be difficult to form reliably in thin stock. A shallow cylindrical recess may not provide enough head containment, and the remaining material under the recess may be too thin.

A countersink is also limited in sheet metal. If the sheet is thin, the conical cut can remove most of the thickness around the hole. That can leave a weak edge and poor screw seating. In practice, sheet metal designs often use formed features, special hardware, or allow the fastener head to remain proud rather than trying to machine a deep seat into very thin stock.

So for thin sheet, both features can become impractical. The design decision should start with thickness and structural need, not just with a desire for flush hardware.

Limitations of countersinking in softer materials

There are real limitations of countersinking in softer materials. Because a countersink creates an angled bearing surface, the screw head loads the material through that tapered seat. In soft materials, the seat can deform, wear, or embed under clamping force. That can change flushness after assembly and can reduce repeatability if the screw is removed and reinstalled.

Soft materials are also more sensitive to chatter, edge tearing, and burr formation during machining. If the countersink edge is ragged or oversized, screw seating becomes inconsistent. In those cases a counterbore with a washer-like head bearing area, or a different fastening strategy, may be more stable.

This does not mean countersinks cannot be used in soft materials. It means the designer should treat them with more caution and confirm that the seating surface will hold shape under load.

Countersink or counterbore for larger fasteners?

When choosing between a counterbore and a countersink for larger fasteners, head geometry still controls the answer, but size makes the trade-off sharper.

A larger flat head screw requires a larger countersink diameter, which removes more material near the surface. In a thin or highly loaded part, that can weaken the region around the hole. Angle mismatch also becomes more visible because the contact area is larger.

A larger socket head cap screw or bolt head usually pushes the design toward a counterbore. The cylindrical recess can contain the head while keeping a flat bearing surface. But the larger the head, the more important depth control and wall thickness become. A large counterbore in a small part can remove too much material and reduce stiffness.

Checklist: feasibility factors to confirm before specifying either feature

Before releasing a drawing, it helps to verify these points:

• Fastener head style: flat head, socket head, or hex head
• Need for flush or recessed seating
• Available material thickness at the hole
• Material behavior under head bearing load
• Tool access for machining the feature
• Tool access for assembly and maintenance
• Risk of weakening the part near the hole
• Whether the hole will be made by drilling plus secondary cutting, or by CNC interpolation
• Whether seating must be cosmetic, functional, or both
• How the feature will be inspected

Also confirm what the print must control: countersink angle, major diameter, and functional depth for a conical seat, or counterbore diameter, depth, and floor condition for a flat-bottom recess. If location is function-critical, define the datum basis for the hole and recess, so concentricity expectations are clear before release.

How countersinks and counterbores work in machining

From a machining view, both features start with a pilot hole first, as you must use a pilot to ensure accurate alignment before machining. After that, the cutting action and control points differ.

Pilot hole requirements for countersink and counterbore

The pilot hole requirements for countersink and counterbore depend on function. In both cases, the through hole or threaded hole usually establishes the main fastener path. The countersink or counterbore is then machined relative to that hole.

For a countersink, the pilot hole helps center the tool when drilling a countersink hole and defines where the cone will begin. For a counterbore, the pilot hole defines the center of the cylindrical recess and may also provide chip escape.

If the pilot hole is off-location, oversized, or poorly finished, the secondary feature can inherit that error. That is why hole sequence matters. In short, the seat quality depends not just on the final tool, but also on the quality of the original hole.

How countersink angle affects screw fit

How countersink angle affects screw fit is one of the most important decision points. A flat head screw is made with a defined head angle. When the angle matches the screw head, the countersink can help guide seating, but final alignment still depends on clearance, positional error, burr condition, and how fully the conical surfaces contact during tightening.

If the countersink angle is too large or too small for the screw, contact shifts toward the top edge or deeper region of the head. That can prevent true flush seating, reduce bearing area, and produce unstable clamping. It can also make the screw appear flush before it is properly supported.

This is why angle choice is not a minor detail. It is part of the fit between the fastener and the part.

How to choose the right countersink bit angle

Always use a countersink bit that matches the fastener head and choose the angle of the countersink from the fastener standard, showing that same included angle on the drawing. Flat head screws are not interchangeable across angle systems, so the print should identify the fastener standard or head style, the countersink major diameter, and the functional depth or flushness requirement.

From a manufacturing view, tool condition also matters. Even the correct nominal angle can produce poor seating if the tool chatters, leaves burrs, or cuts an uneven surface. So angle selection and cut quality should be considered together.

In practical terms, the designer should define the feature around the intended fastener standard, and the machinist should confirm the cutting tool matches that requirement.

How circular interpolation is used for counterbores

In CNC machining, how circular interpolation is used for counterbores depends on the machine and feature size. Circular interpolation means the cutter moves in a circular path to generate the cylindrical recess using an endmill or a counterbore cutter, rather than relying only on a dedicated counterbore tool.

This method can be useful when a CNC mill is already set up for the part, when feature diameters vary, or when the shop wants to create the recess with a standard end mill. It allows control of diameter and depth through programmed motion. It can also help when a special form tool is not preferred.

The trade-off is that tool deflection, cutter diameter, machine rigidity, and path strategy can affect the final size and floor condition of the counterbore.

Diagram: conical cutting vs flat-bottom enlargement in CNC machining

A simple way to picture the difference is this:

• Countersink: a conical tool removes material from tape at the top of the hole
• Counterbore: a flat-ended tool or interpolated cutter enlarges the top of the hole into a straight-walled recess with a flat floor

The key point is that the countersink is defined strongly by angle, while the counterbore is defined strongly by diameter, depth, and floor quality.

Countersink vs counterbore in CNC machining: trade-offs

In CNC work, both features are common. Neither is difficult in a general sense, but each has its own control points and failure modes.

Difference between countersink and counterbore in CNC machining

The difference between countersink and counterbore in CNC machining is mainly how the machine creates and verifies the seat. A countersink is usually faster to cut because it is often a short conical pass. But the result depends heavily on angle match, entry finish, and depth that produces the right top diameter.

A counterbore often needs more controlled Z-depth and may use plunging, pocketing, or interpolation. It may take more time than a simple countersink, but the geometry can be easier to relate to common inspection tools if the recess is accessible.

Challenges of machining countersinks in CNC

There are several challenges of machining countersinks in CNC. Thin edges at the hole entrance can burr easily. Tool chatter can leave a rough cone, which affects seating. Small changes in depth can produce noticeable changes in top diameter. In soft materials, the edge may smear rather than cut cleanly.

Another issue is visual acceptance. A countersink can look correct while still being a poor angular match for the screw. So relying on appearance alone is risky.

Factors affecting counterbore hole accuracy

Key factors affecting counterbore hole accuracy include tool runout, machine rigidity, cutter deflection, interpolation strategy, and depth control. The floor of the recess must be flat enough for good head bearing. The side wall diameter must be large enough for clearance but not so large that the head shifts excessively.

Location also matters. If the counterbore is not concentric with the hole below, the fastener head may seat unevenly or interfere during installation. This is especially important where recess also provides wrench or driver access.

When to use a counterbore instead of a countersink

Use a counterbore instead of a countersink when the fastener head has a flat underside, when the design needs a recessed pocket rather than a conical flush seat, or when the part material and thickness make a countersink unreliable.

This is common with socket head cap screws, some bolt heads, and designs where tool access through the recess matters. It is also a better choice when using a countersink would force a non-flat head screw into a mismatched seat.

Table: setup, toolpath, and inspection trade-offs

Advantages and limitations by fastener type and design intent

The feature should be selected from the fastener outward. In most assemblies, the head style already suggests the seat style.

Counterbore dimensions for socket head cap screws

Counterbores for socket head cap screws should be specified by the fastener standard and the required fit around the head, not from a generic recess assumption. The drawing should define the counterbore diameter, depth, and relation to the pilot hole, because head clearance, floor support, and driver access all depend on that combination.

The important point is not a single number. It is the relationship between head diameter, head height, tool access, and the thickness left in the part after machining the recess.

Counterbore depth considerations for cap screws

Counterbore depth considerations for cap screws include whether the head should sit flush, below flush, or simply below a mating surface. Deeper is not always better. Too much depth can make tool engagement harder and may remove unnecessary material from the part.

A shallow depth, on the other hand, can leave the head proud and defeat the purpose of recess. So the depth should be tied to the assembly needs, not just to head height.

Counterbored hole size for bolt head clearance

For a counterbored hole size for bolt head clearance, the recess must clear the head geometry and any required installation tool. If the recess diameter is too tight, assembly can jam or damage the part edge. If it is too loose, the head may shift more than intended and reduce bearing stability.

This is one reason bolt head recesses are often treated as a clearance function first and an appearance function second.

Risks of using a countersink for non-flat head screws

There are clear risks of using a countersink for non-flat head screws. A socket head cap screw, button head, or hex head is not designed to seat on a conical surface. Contact may occur only at a small edge, which raises local stress and makes the head unstable under torque.

This mismatch can also trap the designer into forcing flushness where the fastener was never intended to be flush. If the goal is simply to recess the head, a counterbore is usually the better feature.

Is a counterbore always better for socket head cap screws?

A counterbore is often the intended feature for socket head cap screws because the underside of the head is flat and the head shape suits a cylindrical recess. But “always better” is too broad. In thin material, the part may not have enough depth for a useful counterbore, and another fastening method may be needed.

Common problems, mistakes, and failure scenarios

Most failures come from mismatch: wrong feature for the fastener, wrong angle, wrong depth, or too little material left around the hole.

Common mistakes when machining counterbore holes

Common mistakes when machining counterbore holes include cutting too deep, leaving a poor floor finish, making the recess off-center to the hole, or failing to allow enough diameter for the fastener head and driver clearance.

Another common mistake is treating the counterbore as just a larger drilled hole. In fact, floor flatness and concentricity matter because the fastener’s head bears on that surface.

Flush fastener seating problems in machined holes

Flush fastener seating problems in machined holes often show up during assembly rather than during machining. The head may stop high, seat unevenly, or rock under torque. In countersinks, the cause is often angle mismatch, burrs, or wrong depth. In counterbores, the cause is often insufficient depth, poor floor flatness, or recess diameter issues.

These problems can be hard to fix late in production because rework may remove too much material or make appearance inconsistent.

Problems with screw heads not sitting flush

When screw heads do not sit flush, the failure mode depends on the assembly. A mating part may not sit flat. A sliding cover may catch. A clamp load may shift because the head is not fully supported. A recessed head may also be too deep for tool engagement.

The key point is that flushness is not only about visual finish. It is often a proxy for correct geometry and proper load transfer.

What happens if the countersink angle does not match the screw head?

If the countersink angle does not match the screw head, contact shifts to only part of the conical surface instead of the full seat. A proud head usually indicates insufficient depth, rocking often points to burrs or seat damage, and uneven clamp or marking is more consistent with angle mismatch or partial contact.

Checklist: what to inspect when fastener seating fails

When seating fails, inspect these items first:

• Fastener head style matches the drawing
• Countersink angle matches the screw head angle
• Counterbore diameter clears the head properly
• Counterbore depth matches the intended head position
• The recess floor is flat and free of heavy tool marks
• Hole and recess are concentric
• Burrs are removed from the hole entrance
• Material around the hole has not deformed or chipped
• Tools can fully engage the installed fastener

コスト、公差、リードタイムの要因

Cost and lead time are driven less by the name of the feature and more by how tightly it must be controlled and how easy it is to inspect.

What drives machining time for countersinks vs counterbores

A simple countersink is often quick to machine because it can be produced with a short conical cut. A counterbore may take more time if it requires pocketing, interpolation, or careful depth control. On the other hand, if the part already needs milling operations, adding a counterbore may fit the setup naturally.

Machining time also rises when the part has many holes, when access is awkward, or when burr control is critical.

How tolerance, depth control, and surface finish affect inspection effort

Inspection effort rises when flush seating is function-critical. For countersinks, the challenge is that angle, diameter, and depth interact. For counterbores, diameter and depth are usually the main checks, along with floor quality and concentricity.

If the part requires visual flushness plus reliable seating under torque, inspection often moves beyond a simple dimensional spot check and includes fastener fit validation.

When rework risk increases due to angle mismatch or depth error

Rework risk increases quickly with countersinks because removing more material changes both diameter and seating position at the same time. If the wrong angle is used, the feature may not be recoverable without changing the fastener or the part design.

Counterbores can also be risky to rework. If the recess is too deep, material cannot be put back. If it is too large in diameter, the head may lose guidance or the surrounding wall may become too thin.

Which is typically easier to machine accurately, a countersink or a counterbore?

That depends on what “accurately” means in the assembly. A countersink can be fast to cut, but accurate seating depends on angle, depth, and screw match. A counterbore often has more dimensions to control, but the relationship between the recess and a flat-bottom head can be easier to understand and inspect in many machined parts.

References: standards bodies, academic sources, and industry reports

The best references for specifying these features include industry standards from アメリカ機械学会, 国際標準化機構そして NIST, as well as technical research from academic institutions such as MIT. Those sources define feature notation, standard fastener geometry, and accepted drawing practice.

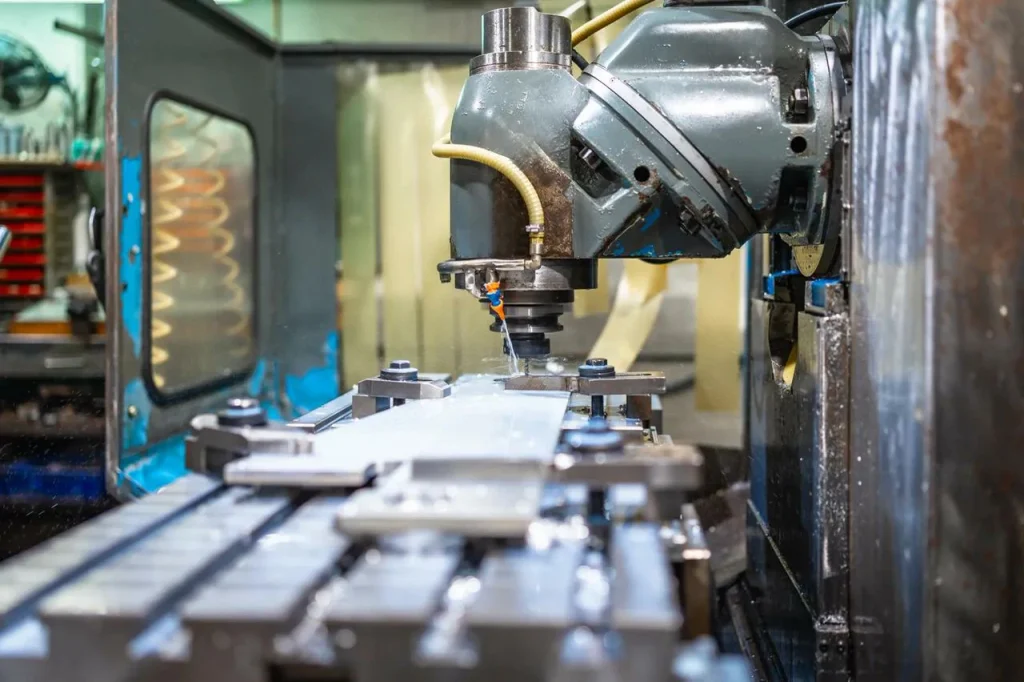

Where each feature is commonly used

Use cases follow head geometry and part function more than tradition.

Countersink vs counterbore for flat head screws in machined components

In machined components, countersink vs counterbore for flat head screws is usually simple: flat head screws go with countersinks when a flush surface is needed. This is common in covers, plates, and assemblies where the screw head must not interfere with a mating surface or moving component.

A counterbore is not the normal seat for a flat head screw because it does not support the angled underside of the head.

Counterbore vs countersink for sheet metal applications

For counterbore vs countersink for sheet metal applications, both features are constrained by thin stock. A countersink may be used only when the material is thick enough to support the cone. A counterbore is often limited even more because the recess needs depth and a flat floor.

So in thin metal parts, the better design choice may be to use formed features or different hardware rather than forcing either feature into insufficient thickness.

Typical use of counterbores for cap screws, bolt heads, and tool access

Counterbores are commonly used for socket head cap screws, bolt heads, and cases where the head must sit below the outer surface for clearance or protection. They also help where a driver or hex key must pass into the recess and reach the fastener head.

This is why counterbores appear often in machine bases, brackets, housings, and clamped assemblies with limited outer envelope.

Can you use a counterbore in thin material?

A counterbore in thin material is only suitable when the remaining floor and surrounding wall still support the required clamp load and the recess still leaves usable driver access. If the feature removes too much local section, approaches breakthrough, or leaves only a shallow ineffective recess, it is usually not a robust choice.

Table: common applications by part type, fastener style, and functional goal

How to choose between countersink and counterbore

The choice should come from four checks: fastener head shape, need for flushness, available thickness, and how the feature will be machined and inspected.

Decision matrix: fastener head style, flush requirement, material, and thickness

If the fastener is a flat head screw and the design needs a flush surface, start with a countersink. Then verify that the material and thickness can support it.

If the fastener is a socket head cap screw or bolt head and the design needs the head recessed, start with a counterbore. Then verify that the recess depth will not weaken the part or block tool access.

If the part is thin, soft, or locally weak around the hole, both options need more caution. In those cases, the wrong feature can create a seating problem and a structural problem at the same time.

When to use a counterbore instead of a countersink

Use a counterbore instead of a countersink when the fastener has a flat underside, when you need a cylindrical recess for head clearance, or when a conical seat is unstable in the material or geometry available.

This also applies when the design needs protected hardware rather than a flush flat head screw.

What buyers and engineers should check before releasing the drawing

Before release, buyers and engineers should confirm:

• The specified feature matches the actual fastener head style
• The flush or recessed requirement is real, not assumed
• The material thickness supports the feature
• The feature leaves enough strength around the hole
• Machining access is realistic for part orientation
• Assembly tool access remains possible after machining
• The inspection method is clear enough to catch seat mismatch before assembly

Confirm the fastener standard, whether the hole is clearance or tapped, whether flushness is cosmetic or function-critical, and how conformance will be verified. Also confirm supplier assumptions for tool access, deburring method, setup strategy, and inspection method, so the RFQ does not rely on unstated process choices.

How do I decide between a countersink and a counterbore?

Start with the fastener head geometry. Flat head screws call for countersinks, while socket head cap screws and many bolt heads call for counterbores. Then check thickness, material, tool access, and whether the head must be flush or only recessed.

Checklist: feature selection, manufacturability, and inspection review

• Match feature geometry to fastener head geometry
• Confirm need for flush versus recessed seating
• Check local part thickness and remaining wall section
• Consider material response under clamp load
• Confirm machining method and tool access
• Plan for burr control and surface quality
• Define how seating success will be inspected
• Verify assembly driver access after installation

In short, the countersink vs counterbore decision is about fit between fastener, part geometry, and manufacturing method. A countersink is for a conical flat head screw seat. A counterbore is for a flat-bottom recess that contains a cap screw or bolt head. The wrong choice leads to poor seating, interference, weak sections, and rework. The right choice comes from checking head shape first, then thickness, material, access, and inspection.

よくあるご質問

参考文献

https://www.asme.org

https://www.iso.org

https://www.nist.gov

https://www.mit.edu
